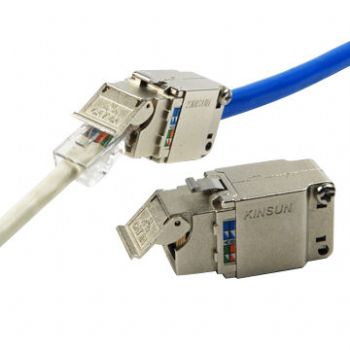

Tool-Less Cat.6A Keystone Jack
Environmental Performance:
Description
Construction materials:
Plastic housing: engineering thermoplastic, flammability rating UL 94V-0
Contact base material: phosphor bronze
Contact plating: 50u-inch gold over nickel
Performance specifications:
Durability: much more than 1500 mating cycles (for RJ45)
Plug: 100g minimum force per contact, using FCC approved plug, accepts FCC 8-position plugs only
Wiring: insulation displacement (IDC) accommodates 22 to
26AWG/solid
Listing and verifications:
ANSI/TIA/EIA category 6-channel compliant to the latest draft performance
IEEE 802.3ab Gigabit Ethernet verified
ETL verified for category 6-channel performance(ANSI/TIA/EIA-56B-B.2-1)
UL listed
FCC part 6B.5, subpart F compliant
IEC-603-7 compliant
ISO 11801 class D compliant
Compliant with the RoHS Directive
OEM/ODM orders are welcome
| Country of Origin: | | Taiwan | | | Product Number: | | 3202 | | | Primary Competitive Advantages: | | Green Product: ROHS ,REACHInternational Approvals: UL ,ISO 9001 ,ISO 14000 ,TS 16949Military SpecificationsHighly Automated ProductionMass CustomizationMade in Taiwan and ChinaOEM&ODMHome Made Product | | Main Export Markets: | | EuropeNorth AmericaJapanCentral/South AmericaChinaKorea |
| | Key Specifications: | | Material: UL 94V-0Contact: Phosphor BronzeGold plating: G/F to 50μ-inchType: RJ11 RJ45 RJ48Wiring: Insulation Displacement (IDC) Accommodates 22 To 26 AWG/Solid | | Delivery Details: | | FOB Port:Taiwan HongKong ChinaLead Time: 30 days |
|
Company Name:
KINSUN INDUSTRIES INC.
