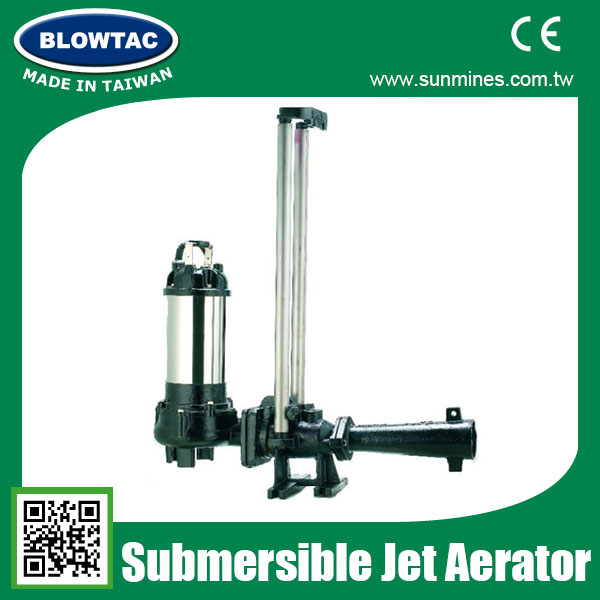

Submersible Jet Aerators with Rail Fitting Set TJA Type
Environmental Performance:
TJA Series
FEATURES
- High oxygen transfer rate, BOD easy to remove from wastewater treatment.
- Mixing and stirring applications for uniform MLSS due to fine bubbles convention.
- Low noise and low cost for construction and maintenance.
APPLICATIONS
- The wastewater treatment aeration and agitation for any kinds of factories.
Constructions - Proven Quality
MOTOR
- Protected to IP68 and class F insulation standards.
- High efficiency and low temperature rise.
SHAFT SEALS
- Double mechanical seals in a separated oil chamber.
- One oil seal in the pressure side to reduce the pressure.
IMPELLER
- Vortex type, dynamically balanced impeller.
- Spherical clearance from 35 mm up to 56 mm.
VENTURE TUBE
- Mixer enhancer helps an effective air-water mix.
- Minor bubbles for optimum clearing performance.
SPECIFICATION
| Model |
Output |
Rated |
Aeration Tank |
Dimension (mm) |
| Air |
OTR |
W.Depth |
Length |
Width |
Height |
| HP |
kW |
m³/hr |
kg-O2/hr |
m |
m |
m |
m |
A |
A1 |
A2 |
D |
H |
H1 |
H2 |
H3 |
P |
| TJA-04 |
1/2 |
0.4 |
5 |
0.12~0.23 |
1.5 |
2.0 |
1.8 |
2.0 |
649 |
82 |
197 |
163 |
417 |
304 |
120 |
72 |
25A |
| TJA-07 |
1 |
0.75 |
10 |
0.3~0.5 |
2.0 |
3.0 |
2.5 |
3.0 |
649 |
82 |
197 |
163 |
471 |
347 |
120 |
72 |
25A |
| TJA-15 |
2 |
1.5 |
22 |
0.9~1.1 |
2.5 |
4.0 |
3.5 |
3.5 |
719 |
103 |
246 |
208 |
548 |
400 |
122 |
72 |
40A |
| TJA-22 |
3 |
2.2 |
40 |
1.9~2.2 |
3.0 |
5.0 |
4.5 |
4.0 |
719 |
103 |
246 |
208 |
568 |
420 |
122 |
72 |
40A |
| TJA-37 |
5 |
3.7 |
80 |
2.9~3.5 |
3.5 |
6.0 |
5.0 |
5.0 |
769 |
110 |
266 |
227 |
633 |
468 |
160 |
92 |
50A |
| TJA-55 |
7.5 |
5.5 |
115 |
4.2~5.1 |
4.0 |
7.0 |
6.0 |
6.0 |
769 |
110 |
266 |
227 |
673 |
508 |
160 |
92 |
50A |
| Items |
(T)JA |
(T)KJA |
| Working Fluid |
Kind |
Sewage and Waste Water |
| Temperature |
0~40°C |
| PH value |
6 -- 8 |
3 -- 11 |
| Pumps |
Impeller |
FC 200 |
SCS16A |
| Casing |
FC 200 |
SCS16A |
| Mechanical seal |
CA / CE |
Sic / Sic |
| Motors |
Insulation |
Class |
| Protector |
Over-temperature and Over-current |
| Housing |
SUS 304 |
SUS 316 |
| Shaft |
SUS 410 |
SUS 316 J2 |
| Cable |
H -- 07 (VDE) |
H -- 07 (VDE) |
