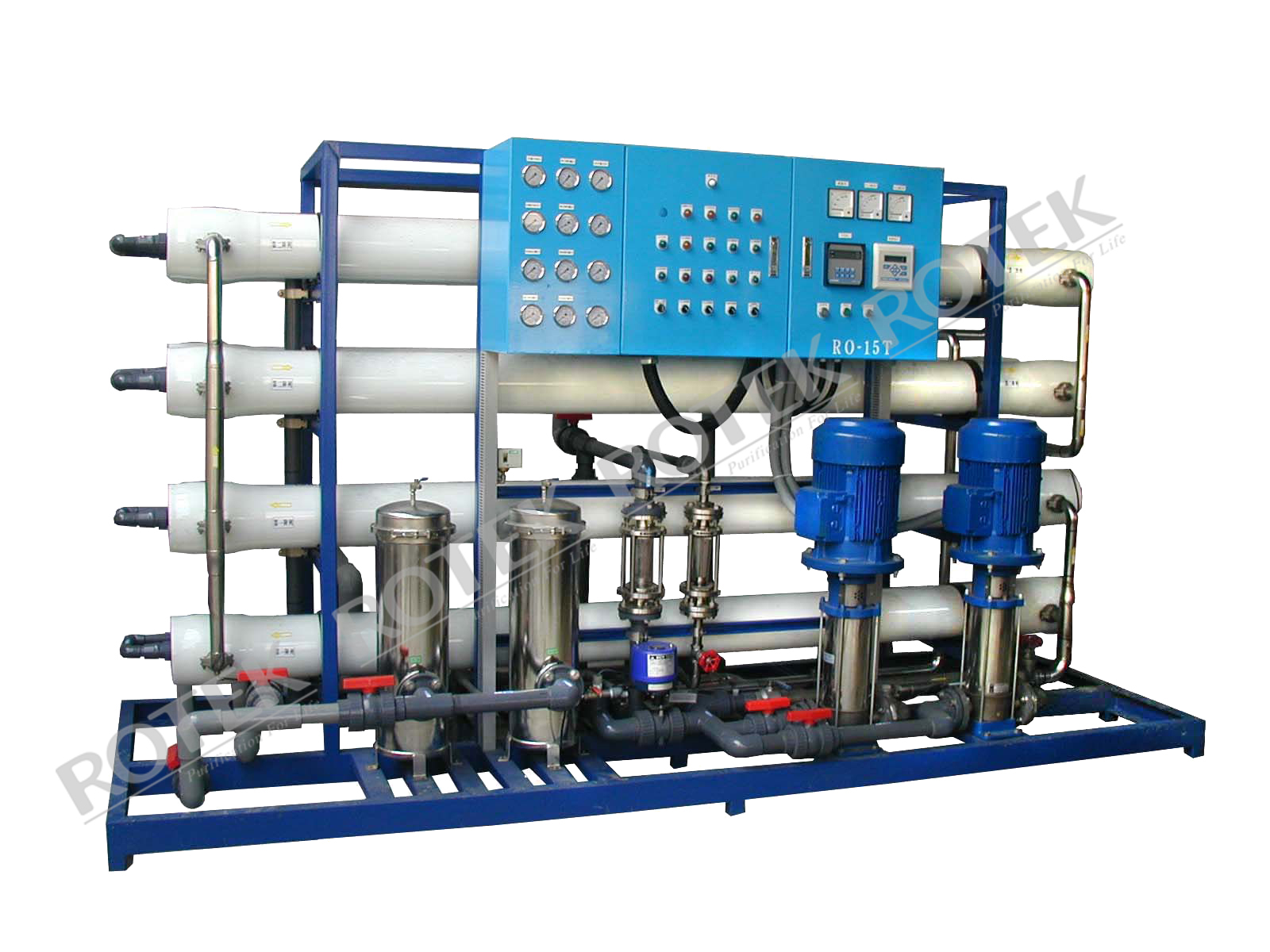

ROTEK RL series industrial reverse osmosis system is a durable piece of equipment which, with proper care and maintenance will last for many years. RL series RO systems are skid mounted with stainless steel frame, pre plumbed and pre wired allowing for quick installation and start up. Models are available with permeate outputs of between 3,000 and 50,000 litres/hr as shown in the specifications.

Standard Features
PLC control + mimic panel
Conductivity meter for permeate water
300PSI FRP membrane housing
Grundfos multistage booster pump
5 micron sediment pre-filter
Rotek rotameters for permeate and concentrate stream
Rotek pressure gauges for prefilter feed and RO feed
Danfoss low pressure switch
SS316 concentrate needle valve
Concentrate recycling with flow meter
Electro-plated SS304 skid frame
Provision for CIP and chemical dosing
Stainless steel pipeworks on high pressure side
UPVC SCH80 pipeworks on low pressure side

Benefits
PLC Control with Mimic Panel
Fully Equipped and Customizable
Factory Tested and Preserved
1-Year Limited Warranty
Manufactured in Taiwan
