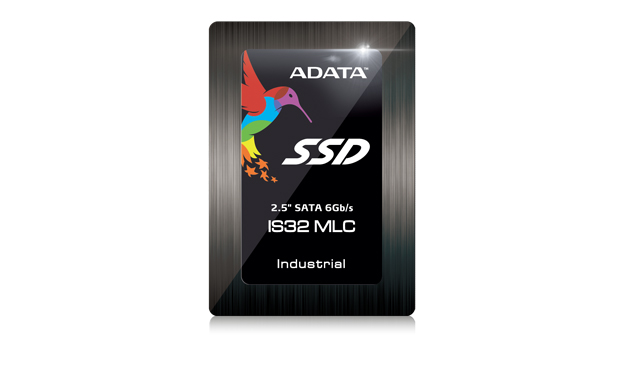

ADATA 2.5” SSD IS32 MLC
Environmental Performance:

ADATA 2.5” SATA III 6.0Gbps Solid State Drives (SSD) feature the best quality hardware components and come with the most comprehensive internal support software, making the device compliant with JEDEC specifications. The low-power design of the product is intended for industrial applications and takes advantage of ADATA's proprietary A+ Testing Methodology, ensuring that the drives meet the exacting requirements of industrial applications. As for SSD quality, compatibility and reliability, ADATA has developed its own SSD Validation mechanism for functionality testing and reliability validation. The strict quality controls provide industrial systems with the best choice for reliability. ADATA Toolbox provides SSD management S.M.A.R.T and system optimization, which helps optimize industrial systems. ADATA SSDs not only have a normal operating temperature range of 0°C to 70°C, they are also suitable embedded computing systems in rugged environments ranging from -40°C to 85°C.

● Support for SATA 6Gbps and is backwards compatible with 3Gbps interface
● Industry standard 2.5" form-factor
● High reliability, high performance
● High-speed MLC NAND Flash
● Suitable for military-grade notebooks, industrial computers and embedded applications

Flash Type MLC Operating Humidity 0℃ to 55℃ / 5%~95% RH, non-condensing
Interface SATA 22PIN Power Consumption
(max.)
2.5W
Capacity 16GB~128GB Vibration Resistance 20G
(80~2000Hz)
Operating Voltage 5V Shock Resistance 1500G/0.5ms
Sequential Read
(max.)
490MB/s Dimensions
(L x W x H)
00x70x7(mm)
Sequential Write
(max.)
190MB/s S.M.A.R.T. Supported
Data Transfer Mode SATA III 6.0Gbps * Note The performance result is based on internal testing. Variations in platforms and application tools may lead to different results
Operating
Temperature
Commercial 0ºC to +70ºC
Industrial -40ºC to +85ºC

Company Name:
ADATA TECHNOLOGY CO., LTD.
