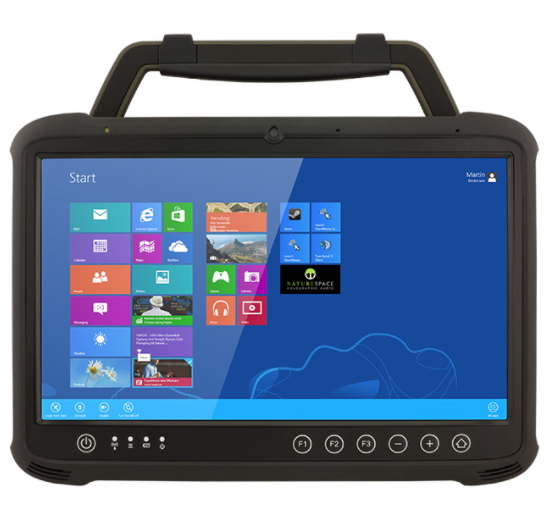

FDN133 13.3 Rugged Tablet PC
Environmental Performance:
- 13.3-inch Tablet with 1920 x 1080 Wide Viewing-Angle Display
- Magnesium Alloy Housing with All-Around Elastomeric Rubber
- Fanless Thermal Design
- MIL-STD-810G Certified
- IP65 Waterproof and Dust Proof
- Optional Hot-Swappable User-Replaceable Battery
- Rugged design: Anti-shock, Vibration, and Transit Drop
- With Optical Bonding for Sunlight Readability
- Optional for M12 connector for LAN and Power Input
Panel_Size
| Panel_Size |
13.3-inch |
| Panel_Brightness |
350 nits with Optical Bonding |
| Panel_Display Resolution |
1920x1080 |
| Panel_Contrast Ratio |
800:1 |
| Touch_SensorType |
Multi-touch Projected Capactive with Glove/Rain/Stylus Modes, Active Pen Support |
| Sensors |
Light sensor/ G sensor / Gyro / E-compass |
| Viewing angle |
85/85/85/85 |
System Specification
| Processor |
Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) |
| Memory |
4GB SODIMM DDR3L-1600 (up to 16GB) |
| Storage |
1 x 128GB M.2 MLC SSD (up to 1TB with 2 x SSD)
2 x Internal M.2 slots |
| Audio |
1 x Built-in Digital Mic, 2 x 1W Speaker |
Wireless Communication
| WLAN |
Intel® Dual Band Wireless, only support 2.4GHz 802.11 b/g/n (M.2) |
| Bluetooth |
Intel® Dual Band Wireless-AC 7265 Bluetooth 4.0 Dual Mode (Classic + Low Energy)(M.2) |
| WWAN |
Optional 4G (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO Rev A, 1xRTT) |
| GPS |
u-Blox 6Q |
I/O Connectors
| Audio |
1 x Built-in Digital Mic with Noise Cancellation, 2 x 1W Speaker |
| External I/O |
1 x HDMI, 1 x RJ45-10/100/1000 Mbps LAN (Optional M12 Connector),
1 x Serial Com Port, 2 x USB 3.0, 2 x USB 2.0, 1 x Headphone Combo,
1 x Power DC in (Optional M12 Connector),
1 x Docking Connector, 1 x SD Card Slot,
1 x Service Windows (access to 2 x M.2 SSD cards and 1 x mini PCI-e WWAN card),
1 x Optional Expansion Window (Smart Card Reader/Barcode) |
In front Control
| LED indicator |
Power / Battery / RF / SSD |
Mechanical and Environment
| Dimensions (W x L x H) |
338.2 x 240 x 30 mm (13.3 x 9.4 x 1.18 inches) |
| Net Weight (kg) |
2.4 Kg |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| IP Proof |
IP65 |
| Operating Humidity |
30% to 80% RH, non-condensing |
| Certifications |
CE, FCC, IC, UL |
| Shock |
MIL-STD-810G Method 516.6 Procedure I |
| Vibration |
MIL-STD-810G Method 514.6 Procedure |
| Drop |
MIL-STD-810G Method 516.6, 4 ft to concrete |
| ESD |
12kV/12kV |
| Housing |
Rear Magnesium Alloy Die-Casting Design Fanless |
Power Management
| Power Input |
12 to 19V |
| Battery |
7.4V, 10280 mAh (typ.) Li-Polymer Battery (2S2P) Optional Hot-Swappable |
| Adapter |
100-240V, 50-60Hz, 19V DC |
| Battery Operating Time |
11 Hours(BAPCo TabletMark v3) |
Product Specification
| OS |
Windows 10 IoT Enterprise Windows Embedded 8.1 Industry Pro 64-bit Windows Embedded Standard 7 (WS7P) 64-bit Windows 7 Pro for Embedded Systems 64-bit |
| RFID |
Optional HF RFID 13.56MHz reader (ISO15693, ISO14443A, ISO18092) |
| Barcode |
Optional short range 1D/2D Motorola SE4500 barcoder reader |
| Camera |
5MP auto-focus camera with LED flash at rear
2MP camera at front |
Security
| Security |
Password security for user and hard disk lock
Kensington lock slot
Trusted platform module (TPM) V1.2
Computrace® theft protection support |
| Mobile Device Management |
SOTI MobiControl compatible |
Company Name:
WINMATE INC.
